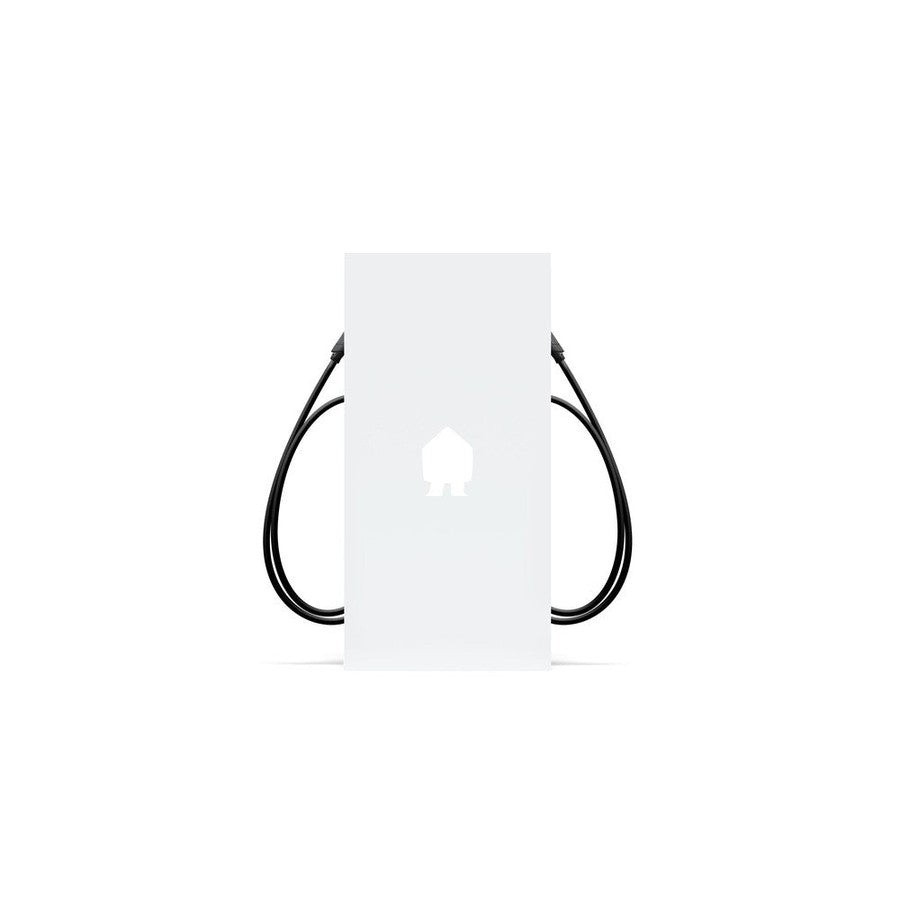

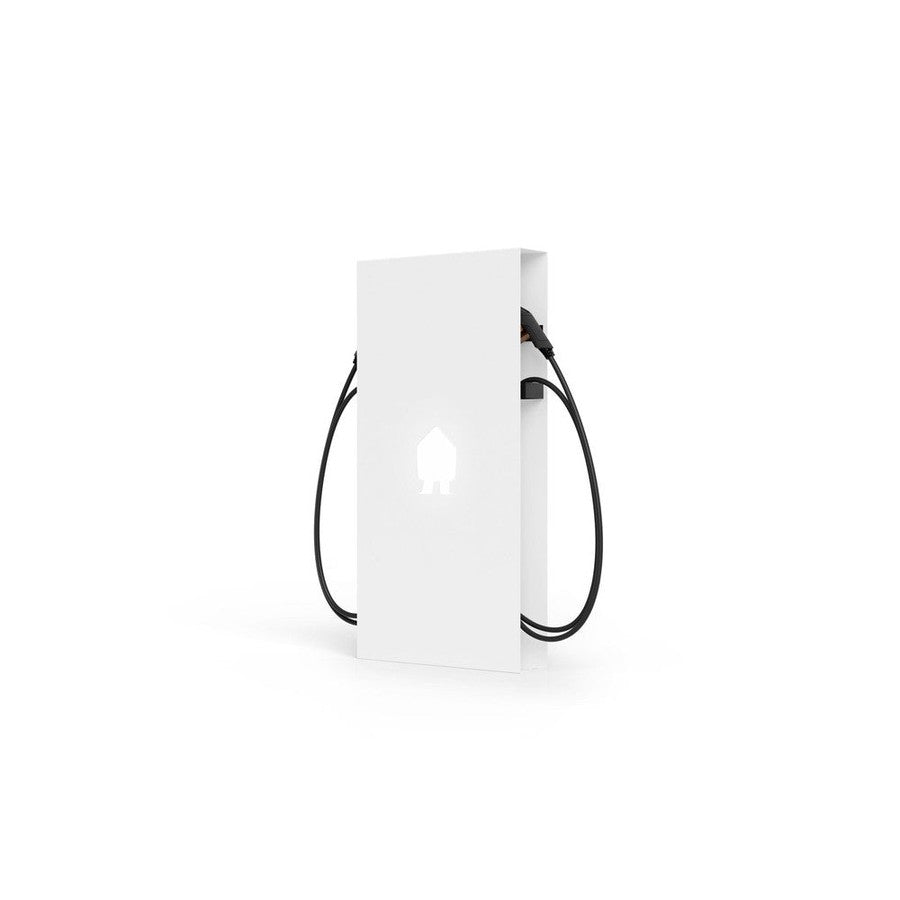

Smappee EV Base - Dual Output

Smappee EV Base - Dual Output

• Award winning minimalistic design that adds to the aesthetic of a business
• NSW Destination Charging Grant approved
• WA Charge Up Workplace EV Charging Grant Approved
• Works with Single-Phase (240V) & Three-Phase (415V) Power
• Add Smappee Infinity System for Smart Charging
• Overload protection, dynamic load-balancing, & solar optimised EV charging
• Set site maximum demand limit to reduce energy bills
• Enable plug & charge, RFID whitelisting, or CPO service enabled charging
• Integrates with Third-Party Systems via OCPP 1.6 J
• Includes 2-Year Product Warranty
• Compatible with many Australia EV charging session billing platforms

The EV Base works with a single-phase 240V supply providing up to 7.4kW per output or three-phase 415V supply providing up to a 22kW per output. The charger can be ordered with a Type 2 socket, or 5m lead with Type 2 plug. The Smappee EV Base is easy to install with a simple cable configuration and installation wizard.

The integrated LED lighting indicates charging status and provides ambient lighting when not in use. With integrated MID power meters the unit can monitor charging consumption and provides detailed consumption and charging session data via the Smappee smartphone app and online dashboard.

By adding a Smappee Infinity system to monitor the grid or EV charging circuit feed the end-user can add an overload set point. This allows for one, or multiple chargers to dynamically adjust their output to ensure the overload set point is not reached (also referred to as Dynamic Load Balancing).

Being OCPP 1.6 J compliant these chargers can be configured to operate with a third party billing platform. Charging sessions can be started and stopped via QR code, RFID and smart EV schedules.

For your safety, the installation must only be carried out by a licensed and qualified electrician familiar with Australian industry standards and is fully responsible for the installation. Sydney EV Chargers cannot be held responsible for any issues or failures of any products caused by the installation process or from a result of an incorrect set up and configuration.
